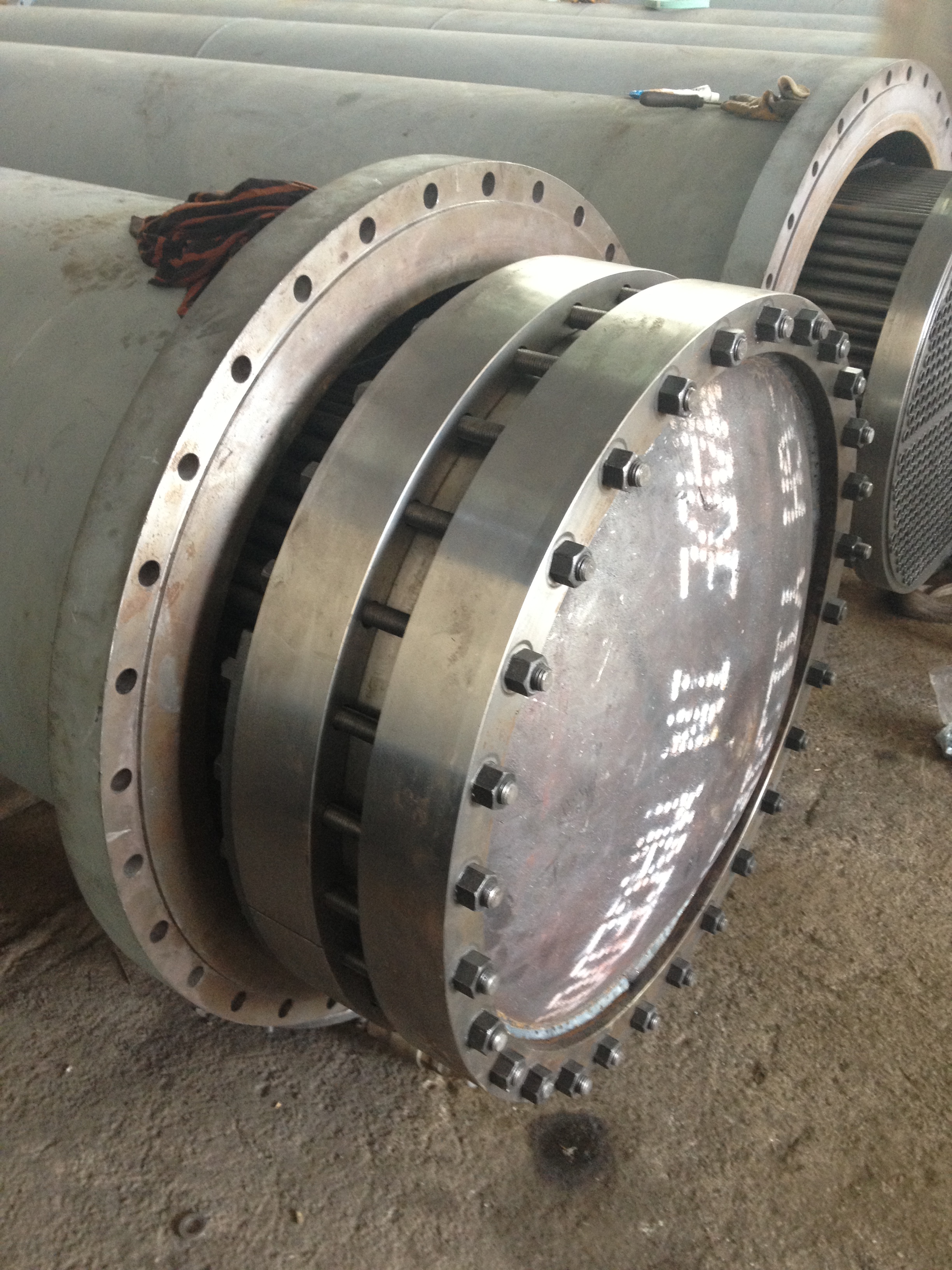

Tube Material: SA179
Shell Material: ASME SA516 Gr70
Flange Material: ASME SA105
Shell Design Pressure: 6 Bar
Tube Design Pressure: 10 Bar
Design Temperature: 300°C
Standard ASME Sec. VIII Div.1
Thermal and mechanical calculations made by MO-MENT
ALBARHAM OIL COMPANY-IRAQ
